How to Mask Clear Canopies Without Paint Bleed (19.08.26)
A canopy can make an otherwise excellent aircraft build look unfinished in seconds. Knowing how to mask clear canopies is less about finding one magic product and more about controlling preparation, adhesion, paint buildup, and removal. The goal is simple: sharp frame lines, transparent glazing, and no lifted paint or adhesive marks.
For most 1/72, 1/48, and 1/32 aircraft kits, pre-cut masks are the fastest route to repeatable results. But tape, liquid mask, and careful hand-cutting still have their place, especially on older kits, unusual subjects, and canopies without aftermarket support.
Start With a Clean, Protected Canopy
Clear parts should be handled differently from the rest of the kit. Even a small fingerprint, sanding residue, or mold-release trace can reduce mask adhesion and show through after painting. Before masking, wash the canopy gently in lukewarm water with a small amount of mild dish soap. Rinse it well and allow it to air-dry under a dust cover.
Inspect the part under a strong light before moving on. Remove any sprue nub with a fine sanding stick or sharp blade, working slowly so stress marks do not creep into the clear plastic. If the kit canopy has a center seam, polish it through progressively finer abrasives, then restore clarity with a plastic polishing compound or a clear acrylic dip if that is part of your usual finishing process.
Let any clear coating cure fully. Masking over an uncured surface can leave impressions or pull the coating away at removal. This is one of the most common causes of cloudy panels around canopy frames.
Choose the Right Masking Method
There is no single best approach for every canopy. The shape of the glazing, the scale, the depth of the molded frame lines, and the paint scheme all matter.
Pre-Cut Canopy Masks
Pre-cut masks are usually made from flexible vinyl, kabuki-style tape, or similar low-tack material. They are designed for a specific kit and often include both exterior and interior frame masks, wheel masks, or other small items. For a mainstream aircraft kit, they save considerable time and reduce the chance of uneven frame widths.
The trade-off is fit. Even a dedicated set may need minor adjustment if the kit has thick molding, a slightly distorted clear part, or separate canopy sections positioned open. Test-fit each piece before pressing it down. Do not assume that every segment should follow the instructions without checking its orientation.
Tape Cut to Size
Quality low-tack modeling tape remains the most versatile option. It is especially useful for straight-edged greenhouse canopies, small windows, and repairs to a pre-cut set. Place a strip over the frame, burnish it gently, and cut along the molded line with a fresh No. 11 blade or a fine hobby knife.
Use very light pressure. You are cutting the tape, not engraving the canopy. On thin clear parts, a hard blade stroke can score the plastic and create a line that becomes obvious once the model is painted.
Liquid Mask
Liquid mask works best for irregular panes, compound curves, and small areas that would require numerous tiny tape pieces. Apply it in several thin coats rather than one heavy puddle. A thick layer can bridge over frame lines and tear unevenly when removed.
It is not ideal for every job. Liquid mask can creep into shallow panel edges, and some products are harder to remove after long paint sessions. On canopies with crisp, raised framing, tape or a dedicated mask set generally produces cleaner boundaries.
Bare-Metal Foil or Frisket Film
For difficult curved glazing, thin foil or quality frisket film can conform more closely than ordinary tape. These methods take practice and are best reserved for subjects where standard tape keeps lifting at the edges. Use a light touch when burnishing, particularly if the canopy has been clear-coated.
How to Mask Clear Canopies Step by Step
Start by deciding whether the canopy will be installed before painting. A closed canopy is usually easier to mask and gives the cleanest transition into the fuselage. An open canopy requires separate masking and painting of each section, plus attention to the inside frame color.

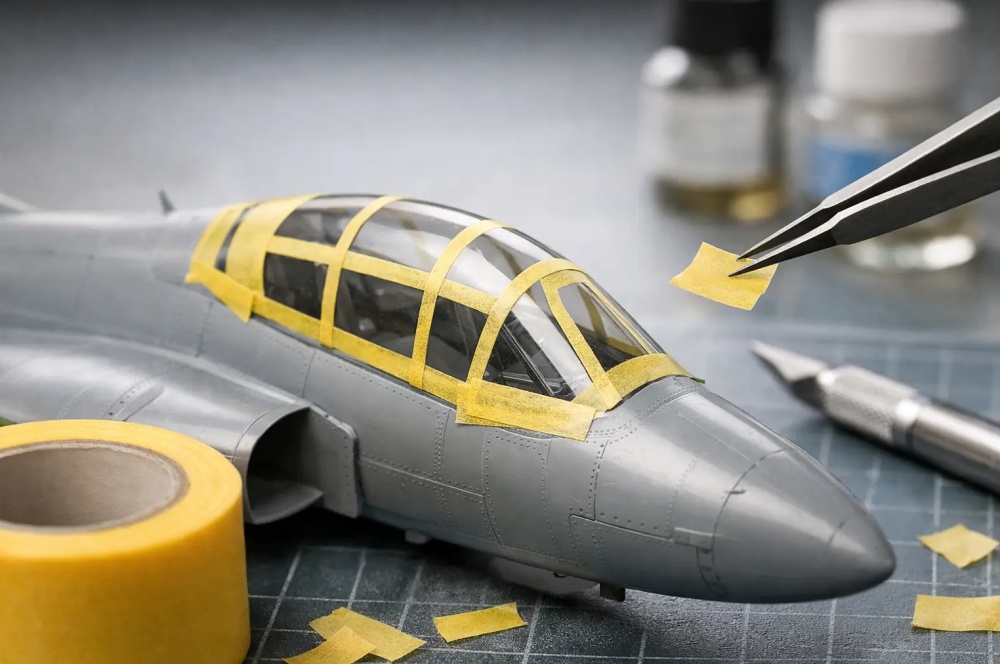

Apply the mask from the center of the canopy outward. On a one-piece windscreen, position the most visible central pane first, then work toward the sides. This prevents a small alignment error from accumulating across the whole part. Use tweezers or a wooden toothpick to place small pieces without contaminating the adhesive with skin oils.
Once positioned, burnish the edges. A toothpick, cotton swab, silicone shaper, or the rounded end of a paintbrush handle works well. Concentrate on the line where the mask meets the frame, but do not press so hard that you distort thin plastic or force adhesive into scratches.
If you are cutting tape directly on the part, leave enough excess material to grip later. Tiny isolated tape pieces can be difficult to remove without scratching the clear plastic. A pointed wooden tool is safer than a metal blade for lifting an edge after painting.
For canopies with internal structure, paint the interior frame color first. In many aircraft, this is cockpit color, dark gray, black, or a specific interior green. Once that color is dry, spray the exterior camouflage or airframe color. Viewed through the clear plastic, the first coat creates the correct interior frame appearance while the outer paint provides the visible external finish.
Prevent Paint Bleed Before It Starts
Paint bleed is usually an adhesion problem, not a paint problem. A mask edge that is not fully seated will allow thin paint to wick underneath, especially when sprayed too wet.
Use light, controlled coats. The first pass should be a mist coat that seals the mask edge without flooding it. Let it set for a few minutes, then build color with additional thin passes. This matters most with highly thinned acrylics and lacquer paints sprayed at high pressure.
Some builders seal the mask edge with a clear gloss coat before applying color. Others use the interior frame color as the sealing pass. Both methods can work, but neither replaces proper burnishing. A sealing coat can also create a raised edge if applied too heavily, so keep it light.
Spray at an angle that directs paint away from the mask edge where possible. This is not always practical on a complex canopy, but avoiding a direct blast into every edge reduces the risk of forcing paint beneath the mask. For hand brushing, load the brush lightly and pull paint away from the edge rather than pushing it into the tape line.
Remove Masks at the Right Time
The best removal timing depends on the paint used. With most acrylics and lacquers, remove the mask after the paint has set but before it becomes fully hard. This often produces a cleaner edge because the paint film is less likely to chip or bridge across the tape.
Lift one corner with a toothpick and peel slowly back over itself at a low angle. Do not pull straight upward. Work in a deliberate sequence and inspect each pane as you go. If paint has formed a bridge between the mask and surrounding surface, lightly score the edge with a fresh blade before continuing.
Do not rush into cleanup. Small traces of paint can often be removed with a sharpened wooden toothpick, a damp cotton swab, or a very fine brush with the appropriate thinner. Test any thinner on spare clear plastic first. Strong solvents can haze, craze, or permanently damage a canopy in moments.
Fixing Common Canopy Masking Problems
If a mask lifts during painting, stop and press it back down before adding more paint. Trying to bury the problem under another coat usually creates a thicker, more obvious leak. For a stubborn corner, replace that small section with fresh tape.
If paint has seeped under the mask, wait until the surrounding paint is stable, then remove the error carefully. Acrylic overspray sometimes responds to a lightly dampened cotton swab. Lacquer and enamel cleanup requires more caution. Mechanical removal with a toothpick is slower, but it is often the safer choice on clear parts.
If the canopy fogs after installation, the cause may be adhesive fumes rather than masking. Use a canopy-safe adhesive, white glue, or a suitable clear-part cement instead of a fast-setting solvent glue near visible glazing. If cyanoacrylate is necessary for a specific attachment, use the smallest possible amount and allow adequate ventilation and curing time.
A Better Result From the First Paint Session
The strongest canopy work is usually invisible: frame widths look even, the clear panels remain clear, and the paint follows the molded structure without drama. Dedicated masks are worth considering when they are available for the exact kit, particularly on multi-pane aircraft in 1/48 or 1/32. For simpler canopies, carefully cut tape remains a dependable workshop staple.
Keep the process patient rather than complicated. Clean plastic, a well-seated mask, thin paint coats, and gentle removal will do more for a canopy than any last-minute correction. Treat the clear parts as a separate finishing project, and they will support the detail work across the rest of the model instead of distracting from it.
